Delivery Feedback

Out-of-the-box, Hopp excels in managing and iterating the transformation, keeping track of issues in the data and transformation rules via structured events.

As long as the data is being processed inside Hopp, everything that happens to it is visible and traceable.

But once the transformed data leaves Hopp and is delivered to the target system, that visibility typically stops. At that point, Hopp no longer knows whether the data was accepted, partially rejected, or failed validation in the target system.

Make no mistake, a core quality of Hopp is a strong, iterative process ensuring that - when go-live approaches - Hopp has all the validations in place to ensure that no problematic data reaches target delivery.

But that is only true at the final stages of the project. Until the project gets to this point, there will be issues in the data delivered to the target system during the test iterations of the migration.

Delivery Feedback addresses this gap by allowing feedback from the target delivery - both errors and confirmations - to be fed back into Hopp and shown as Events on the affected Business Objects, right alongside the events that Hopp itself emits.

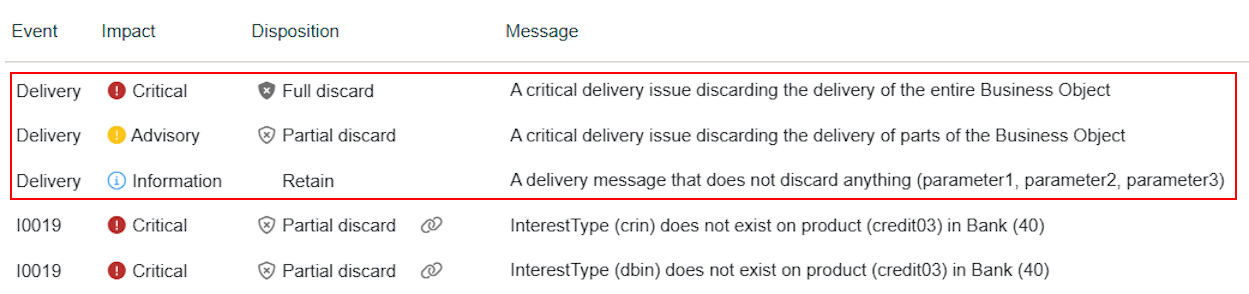

This feedback appears directly in the Hopp Portal:

The Delivery Feedback extension

True to form, the delivery feedback in Hopp is an extension point. That means that Hopp is open for custom implementations of delivery feedback to meet specific requirements for any migration project.

We provide a default implementation of a Target Feedback Provider that can read the target feedback from a CSV file that adheres to a specific format. In many cases, this default provider is enough to handle the needs of a project.

So, let's first have a look at that default provider and then later in this article line up the actual Feedback Provider Extension interface contract that enables a fully customized implementation.

Using the default CSV Target Feedback Provider

As all extensions, any target feedback provider must be explicitly used by a given track. As always, this is done from the Operations/Administration/Extension Usage panel for the track:

Choose the Delivery Feedback extension type from the drop down:

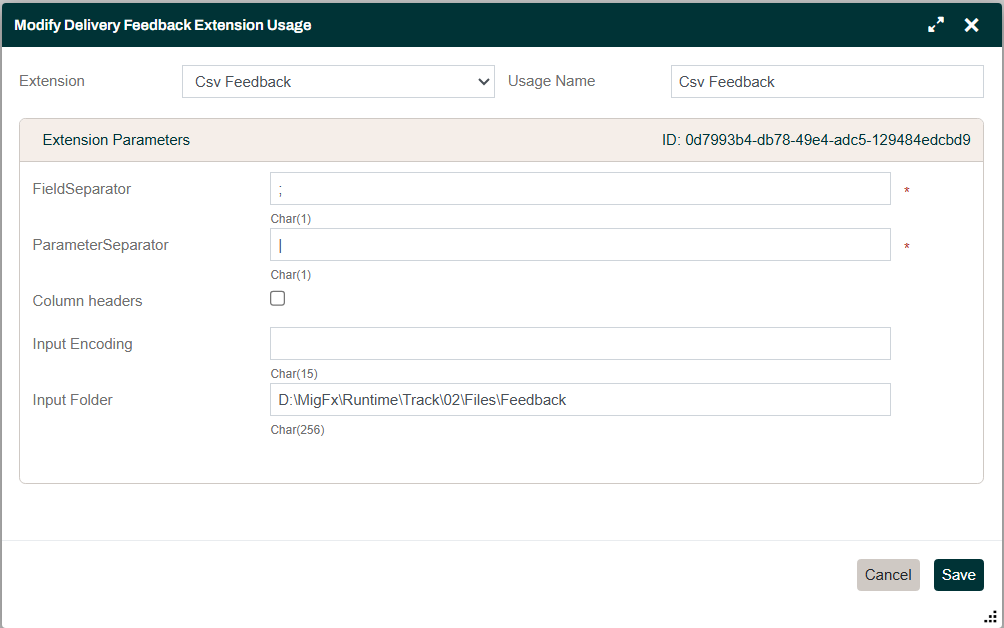

Now you can add the usage of the default Csv Feedback provider (or any other target feedback provider that is available) and provide the values for the parameters it requires:

The parameters for the default Csv Feedback provider are

FieldSeparator

The character used to separate fields in the csv file

ParameterSeparator

The last field in a line in the csv file can be a list of parameters to associate with the issue reported by the line. This parameter is the character used to separate the parameters in the list (must be different from the FieldSeparator)

Column Headers

Check here if the first line in the file contains column headers

Input Encoding

Specify the input encoding for the CSV file or leave blank to use the encoding set in the options for the track

Input Folder

The folder where the csv files are read from

Launching the job to read the target feedback

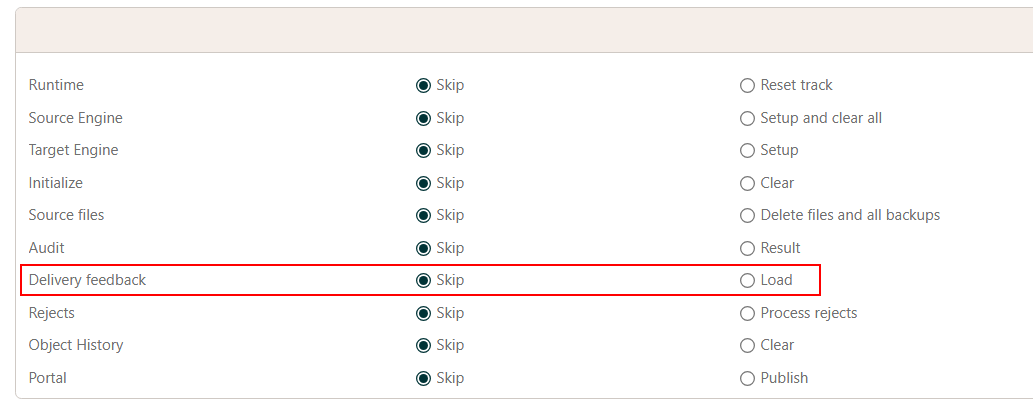

Once a Target Feedback provider has been configured, a job to load the feedback can be launched from the Operations/Administration/Manage panel:

Processing of Csv files

Each line in a Csv file reports the result of the target delivery that is related to a specific Business Object instance in Hopp. A Business Object instance is identified by a numeric ItemId.

A Csv file can contain multiple lines for a given ItemId.

A line for an ItemId can report an issue for that item, and such lines will become Events in the Hopp Portal. A line may also report that the item was delivered with no issues.

Provide Feedback for all items

A line in the Csv file that reports that the item was delivered with no issues will clear any previous delivery events the Hopp Portal may have stored for this item.

It is important to always provide feedback for all items in a delivery, including those that don't have issues.

Otherwise, you risk leaving behind delivery events that are no longer occurring.

You can place multiple Csv files in the Input Folder. However, if feedback for the same ItemId appears in multiple files, only the feedback from the newest file will be used for that ItemId.

When the Csv feedback provider is running, it will read and process all the files in the Input Folder and then move the files to a Processed sub folder so they will not be processed again.

The Csv file format

The fields separated by FieldSeparator in the Csv file are:

ItemId;Action;Message;Disposition;Impact;Parameters

ItemId	This is the common reference that ties the line in the Csv file to the correct Business Object instance in the Hopp Portal
Action	clear the item was delivered with no issues record record an issue
Message	The message to show as an Event in the Hopp Portal for this issue
Disposition	DiscardRoot The entire item has been discarded DiscardChild A part of the item was discarded Retain Nothing was discarded
Impact	Critical Advisory Information
Parameters	A list of values separated by ParameterSeparator to associate with the issue

Some samples

To clear feedback for item (all 3 are valid):

123456
234567;
345678;clear

To record feedback for item:

123456;record;A critical delivery issue discarding the delivery of the entire Business Object;DiscardRoot;Critical
123456;record;An advisory delivery issue discarding the delivery of parts of the Business Object;DiscardChild;Advisory;
123456;record;A delivery message with 3 parameters that does not discard anything;Retain;Information;parameter1|parameter2|parameter3

Implementing a Target Feedback Provider

Implementing a target feedback provider follows the same pattern as other extension points of the Hopp Runtime:

• Derive from an abstract base class provided in the public Hopp libraries (from NuGet or installed locally)
• Decorate the derived class with the Extension attribute to give it a name in the Hopp Portal
• Ask for parameters with properties decorated with the ExtensionParameter attribute
• Implement the required abstract members defined by the abstract base class

Let's illustrate this by inspecting the default Csv feedback provider

Inspecting the default Csv Feedback provider

using MigFx.Director.Server.Feedback;
using MigFx.Director.Server.Feedback.Target;

// The Extension attribute names this extension in the Hopp Portal
[Extension("Csv Feedback")]
// Deriving from the TargetFeedbackProvider base class provided in the public Hopp Libraries
internal class TargetFeedbackProviderCsv(ITargetFeedbackContext context) : TargetFeedbackProvider(context)
{
    // This is the abstract method to override to do whatever needed
    // to return an enumeration of IFeedbackItem to the Hopp Runtime
    public override IEnumerable<IFeedbackItem> GetFeedback()
    {
        // This is where the default Csv feedback provider reads and processes
        // the Csv files and moves them to the Processed sub-folder
    }

    #region Parameters

    [ExtensionParameter(Length = 1, NotBlank = true, DefaultValue = ";", Hint = "The character delimiter separating field values")]
    public string FieldSeparator { get; set; } = ";";

    [ExtensionParameter(Length = 1, NotBlank = true, DefaultValue = "|", Hint = "The character delimiter separating the values in the Parameters field")]
    public string ParameterSeparator { get; set; } = "|";

    [ExtensionParameter(DataType = MigDataTypeCode.Boolean, Label = "Column headers", Hint = "Do input files contain a column header row?")]
    public bool ColumnHeaders { get; set; }

    [ExtensionParameter(Length = 15, Label = "Input Encoding", Hint = "Leave blank to use track encoding as set in options", Nulls = true)]
    public string InputEncoding { get; set; }

    [ExtensionParameter(Length = 256, Label = "Input Folder", Hint = "The folder where target feedback files are placed ", Nulls = true)]
    public string InputFolder { get; set; }

    #endregion
}

That is really all there is to it.

Public interfaces

There are 3 interfaces in the overall contract for the feedback provider:

• ITargetFeedbackContext
• IFeedbackItem
• IFeedbackMessage

The ITargetFeedbackContext is passed to the constructor of the feedback provider and contains a helper method that can be used to get the ItemId in exchange for the key that identifies the Business Object in the Hopp Runtime:

namespace MigFx.Director.Server.Feedback
{
    /// <summary>
    /// Represents a feedback context that provides access to job context and helper methods.
    /// </summary>
    public interface ITargetFeedbackContext : IJobContext
    {
        /// <summary>
        /// Gets the unique identifier for an item based on its type (Business Object name) and key fields.
        /// </summary>
        /// <param name="itemType">The (Business Object name) of the item.</param>
        /// <param name="keyFields">The collection of key-value pairs representing the key fields that identify the item.</param>
        /// <returns>The unique identifier for the item.</returns>
        long GetItemId(string itemType, IEnumerable<KeyValuePair<string, string>> keyFields);
    }
}

The IFeedbackItem interface contains the properties that Hopp requires for the all feedback for a single item:

namespace MigFx.Director.Server.Feedback
{
    /// <summary>
    /// Represents a feedback item containing a collection of messages for a single Business Object.
    /// </summary>
    public interface IFeedbackItem
    {
        /// <summary>
        /// Gets the timestamp for this feedback. Feedback must be in ascending timestamp order. In case multiple
        /// feedbacks are received for same ItemId, the newest feedback wins. If feedback for the same ItemId
        /// is encountered again with an older timestamp an <see cref="InvalidOperationException"/> is thrown.
        /// </summary>
        DateTime Timestamp { get; }

        /// <summary>
        /// Gets the ItemId that references these messages back to a specific Business Object in Hopp
        /// </summary>
        long ItemId { get; }

        /// <summary>
        /// Gets the collection of feedback messages associated with this item.
        /// </summary>
        IEnumerable<IFeedbackMessage> Messages { get; }
    }
}

The IFeedbackMessage contains the properties for a single message for an item.

namespace MigFx.Director.Server.Feedback
{
    /// <summary>
    /// Represents a feedback message containing information for a Hopp event.
    /// </summary>
    public interface IFeedbackMessage
    {
        /// <summary>
        /// Gets the message text describing the event.
        /// </summary>
        string Message { get; }

        /// <summary>
        /// Gets the disposition indicating how the Business Object was handled
        /// </summary>
        EventDisposition Disposition { get; }

        /// <summary>
        /// Gets the impact of the event
        /// </summary>
        EventImpact Impact { get; }

        /// <summary>
        /// Gets the collection of parameters associated with the event.
        /// </summary>
        IEnumerable<string> Parameters { get; }
    }
}

Integrating a custom Target Feedback Provider into the Hopp Runtime is quite straightforward.

The extension interface is clean and minimal, requiring only that you return feedback items with their associated messages.
